Tsim thiab tsim cov me me, nruab nrab, loj, thiab ntxiv cov huab cua ua kom tiav thiab cov ntawv thov kom zoo li SVG, SCVS xws li SVG, SCC, HVDC, thiab HVAC.
Kev muab kev ua yeeb yam uas khij lub ntiaj teb
01

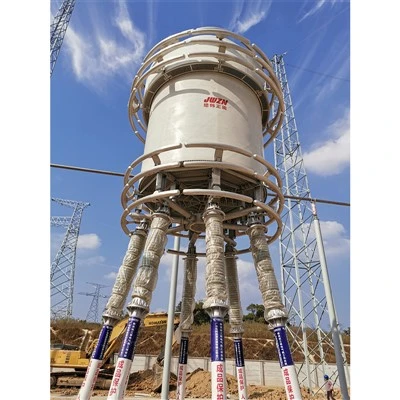

Smoothing reactors rau cabji-Guaqua ± 1100 KV uHV DC Kev Xa Xov Xwm Project
02
Converter reactors rau baihetan-jiangsu ± 800 kV uHV hybrid DC Kev Cuam Tshuam
03
500 kv shunt reactors rau lub ± 800 KV Sylvania Project hauv Brazil
Zoo Tswjhwm
Kev xa tuaj
Litcher:Qhov loj me, sib tshooj tus nqi, rwb thaiv tsev tsis kam, dc kuj, tiv taus voltage kuaj
● Epoxy cob / kho tus neeg sawv cev / imidazole:Compressive lub zog thiab kev hloov ntsuas kub
● Cov khoom siv fiberglass:Qhov loj me, cov khoom siv Veri Fi cation, txuas ntxiv kev saib xyuas raug
Rais Nta:Qhov loj me, compressive zog thiab xob laim cuam tshuam kev xeem
● Aluminium Bar:Qhov loj me, Daim Ntawv Qhia Cov Ntawv Qhia
Insulators:Qhov ntev, kev txheeb xyuas cov ntaub ntawv, kev sim ua tim khawv
Profer Stainless cov khoom lag luam:Qhov ntev, kev soj ntsuam sib nqus, cov ntawv tshaj tawm cov ntaub ntawv txheeb xyuas thiab txuas ntxiv kev saib xyuas raug
● Cov khoom siv fiberglass:Qhov loj me, cov ntaub ntawv tshaj tawm tshuaj xyuas thiab txuas ntxiv tsim khoom
Kev soj ntsuam hauv-txheej txheem tshuaj xyuas
● Mov nplaum ntsiab lus ntawm FI Berglass
Hi-lauj kaub kuaj cov hlau me me rau cov cua daj cua dub
● AC Hi-lauj kaub kuaj ntawm cov cables rau cua
● Rwbronulation tsis kam thiab DC cov kev ntsuam xyuas ua ntej thiab tom qab kho
● Cov ntaub ntawv nkhaus
● Soj ntsuam kev kuaj xyuas - cov neeg coj thiab windings
Yuav tsum muaj rau kev siv cov huab cua-core reactors
• Tsis muaj cov khoom siv tawv me ntawm cov thawv kaw (rov taws av, hauv av, thiab lwm yam) Feem ntau, qhov no yuav tsim 12 ko taw x 12 ko taw cheeb tsam (kwv yees huab cua core reactors raug muab faib ua ke ntawm lub chaw. Yog tias cov huab cua core reactors tsis yog pawg, ntau thaj chaw hauv pem teb ntxiv.
• Aluminium thiab ntu gasksed steel cov khoom siv tuaj yeem tshem tawm mus txog 1/2 lub cheeb tsam ntawm phab ntsa nruab nrab thiab huab cua core reactor.
• Yog tias rov ua dua rau hauv qab cov neeg muaj kev txhawj xeeb (lossis lwm yam kev sib tw hlau kom nce cov reactors deb ntawm hauv pem teb, qab nthab lossis av. Yog tias cov reactors tsis tuaj yeem tsa vim yog qhov kev txwv siab, thib kaum x 3/8 fick aluminium phaj tuaj yeem muab tso ncaj qha rau hauv qab cov ntaub thaiv kom tiv thaiv.
• Yog tias muaj kev cuam tshuam kev noj qab haus huv yog qhov kev txhawj xeeb, cov reactor tsim yuav tsum tau sab laj kom txiav txim siab txog qhov kev ncua deb raws cov qib sib nqus cov qib. Raws li txoj cai dav dav, lub cheeb tsam sib nqus 1/2 txoj kab uas hla los ntawm cov tshuaj reactor yuav kwv yees li 30 gauss. Daim ntawv nyias nyias yuav muab kev thaiv thaiv cov nyhuv. Txhawm rau kom tau txais cov chaw qis dua, ntau qhov chaw tuaj yeem muab, lossis 3/8 kab hlau rhuav (ntaub thaiv npog) nyob ib ncig ntawm reactor yuav siv tau. Yog tias cov neeg ua haujlwm tuaj yeem tiv toj nrog cov kab hlau txhuas, lub tsev phab ntsa ob chav yuav raug tsim nyog vim qhov kub thiab qhov phom sij ntawm kev kub nyhiab.
Voltage mus txog 46 kV
Bil txog 250 kV bil
Kvar txog 10000
Max ac tam sim no=4000 amps
Max DC Tam Sim No=6200 amps
Zaus - Max 420 Hz
Rwb Thaiv Tsev Kawm Ntawv - 220 CO
Qhov ntsuas kub nce 80, 115, 150 co
Cov hom uas muaj: 1, 2, 3r thiab 3RE
Qhib coil rau sab hauv tsev teeb tsa sab hauv nkaus xwb
* Saum toj no kev ntsuas yog raug rau kev sib xyaw ua ke ntawm tam sim no, hluav taws xob thiab kev ua si
Cov Txheej Txheem Cua Reactor Daim Ntawv Thov Ntau Yam
Cov tub ntxhais huab cua sov muaj feem ntau yog ua haujlwm hauv hluav taws xob fais fab kis thiab faib cov tshuab xws li hauv hluav taws xob hluav taws xob ntawm cov nroj tsuag hluav taws xob. Lawv raug ntsia los tiv thaiv cov kab ke no thiab kom lawv ua tau zoo.
Raws li cov ntaub ntawv tshwj xeeb cov chaw ua haujlwm tseem ceeb yuav siv rau hauv cov chaw kuaj hluav taws xob kuaj thiab tshawb fawb.
Nrog rau kev txhim kho hluav taws xob tshuab, tshwj xeeb tshaj yog los ntawm kev nce ntawm cov semiconductors hauv cov hluav taws xob inductors tau hloov pauv hauv kaum xyoo dhau los. Daim ntawv thov Spectrum rau cov tub ntxhais cov kev siv tshuab hluav taws xob tau txuas ntxiv, tshwm sim los ntawm cov txiaj ntsig kev lag luam tawm tsam thiab los ntawm cov txiaj ntsig ntawm cov kab hlau ntawm cov huab cua-core reactors.
Peb Daim Ntawv Pov Thawj
Kev lees paub raug cai, kev tshaj lij tom qab kev pab cuam.
Cov neeg yuav khoom tseem ceeb
Cov FAQ
Peb txawj tshaj lij Reactor thiab cov muag khoom hauv Suav teb, tshwj xeeb hauv kev muab kev pabcuam zoo rau kev ua haujlwm zoo. Thov koj xav yuav cov neeg muaj qib siab huab cua hauv cov nqi sib tw ntawm cov nqi sib tw los ntawm peb lub hoobkas.
